ONE-PART SELDINGER NEEDLES WITHOUT BASEPLATE WITH PLUG
Vascular introducer needles for single wall style access that are designed with a transparent polycarbonate hub and a very sharp "B" type arterial bevel. Our clear polycarbonate construction coupled with our smooth glide funnel allows for trouble-free guide wire insertion. No stylet included. Also available with porous plug in the hub. Bulk non-sterile needles are available on request.
31-1815 tip. Click for detail.

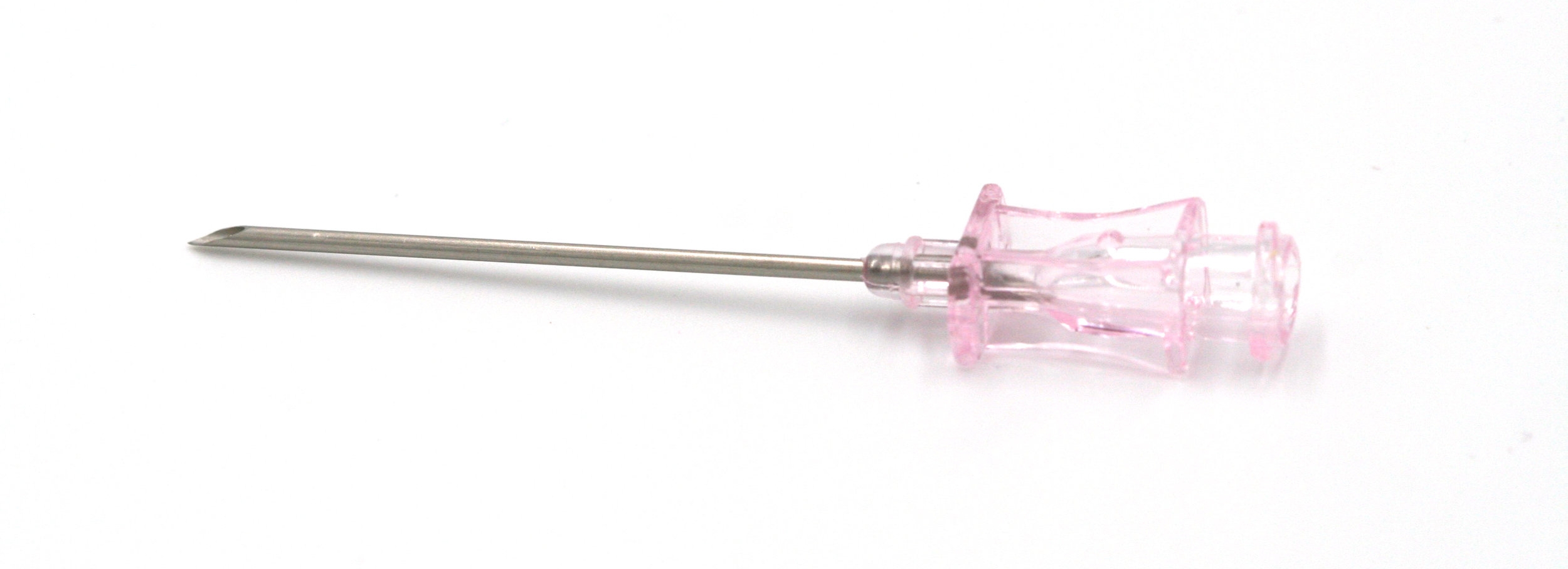

31-1815 shown. Click for detail.
18G NEEDLE – individually sterile packaged in boxes of 25
| ReOrder# | Hub Color | Gauge Size | Length | Accepts Guide | |
| Cm. | In. | ||||
| 31-1815 | Pink | 18g | 3.8 | 1-1/2 | .035/.038 |
| 31-1822 | Pink | 18g | 5.7 | 2-1/4 | .035/.038 |
| 31-1827 | Pink | 18g | 7.0 | 2-3/4 | .035/.038 |
| 31-1835 | Pink | 18g | 9.0 | 3-1/2 | .035/.038 |

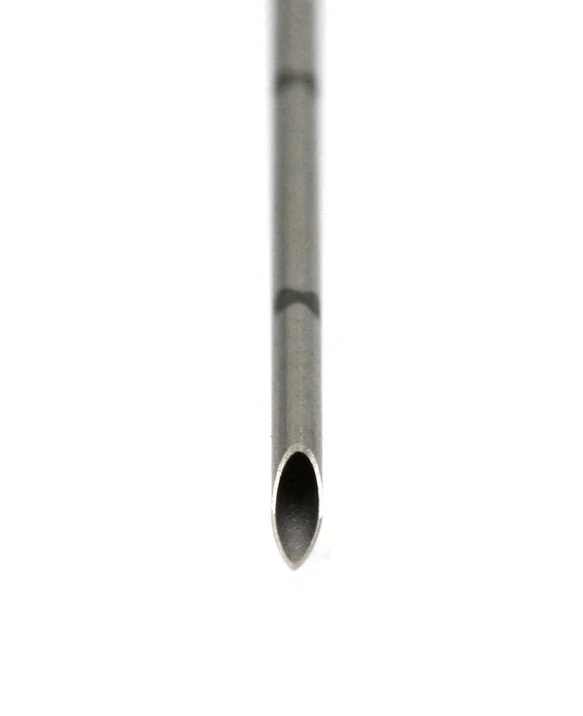

31-1845 tip. Click for detail.
31-1845 shown. Click for detail.
SPECIAL LENGTHS - individually sterile packaged in boxes of 10
| ReOrder# | Hub Color | Gauge Size | Length | Accepts Guide | |
| Cm. | In. | ||||
| 31-1845 | Clear | 18g | 11.0 | 4-1/3 | .035/.038 |
| 31-1860 | Clear | 18g | 15.0 | 5.9 | .035/.038 |
| 31-1880 | Clear | 18g | 20.0 | 7.9 | .035/.038 |
31-1827 tip. Click for detail.
31-1827P shown. Click for detail.
18G NEEDLE WITH POROUS PLUG – individually sterile packaged in boxes of 25
| ReOrder# | Hub Color | Gauge Size | Length | Accepts Guide | |
| Cm. | In. | ||||
| 31-1815P | Pink | 18g | 3.8 | 1-1/2 | .035/.038 |
| 31-1822P | Pink | 18g | 5.7 | 2-1/4 | .035/.038 |
| 31-1827P | Pink | 18g | 7.0 | 2-3/4 | .035/.038 |
| 31-1835P | Pink | 18g | 9.0 | 3-1/2 | .035/.038 |
Special Note: A finger guide is embedded on one side of the hub to indicate bevel placement.
