Cournand-Style Needles
POTTS COURNAND NEEDLES
Our Potts Cournand type needle maintains the integrity of the original design, but we have upgraded the plastic to a clear (non-shadow producing) polycarbonate. This model allows the shaft to protrude out the hub. (Non-sterile needles also available.)
24-1821 tip. Click for detail.
24-1821 shown. Click for detail.
18G NEEDLES - packaged in boxes of 25
| ReOrder# | Hub Color | Gauge Size | Length | Accepts Guide | Obturator | |
| Cm. | In. | |||||
| 24-1821 | Pink | 18g | 5.3 | 2-5/64 | .035/.038 | No |
| 23-1821 | Pink | 18g | 5.3 | 2-5/64 | .035/.038 | Yes |
MODIFIED POTTS COURNAND NEEDLES
Disposable needle set used for Carotid Angiography as well as direct arterial pressure monitoring, blood sampling and percutaneous catheterization. Our clear polycarbonate construction coupled with smooth glide funnel allows for trouble-free guidewire insertion. (Non-sterile needles also available.)
20-1822 tip. Click for detail.
20-1822 shown. Click for detail.
18G NEEDLES - packaged in boxes of 25
ReOrder# |
Hub Color |
Gauge Size |
Length |
Accepts Guide |
Obturator |
|
| Cm. | In. | |||||
| 20-1822 | Pink | 18g | 5.7 | 2-1/4 | .035/.038 | No |
| 20-1823 | Pink | 18g | 5.7 | 2-1/4 | .035/.038 | Yes |
| 20-1827 | Pink | 18g | 7.0 | 2-3/4 | .035/.038 | No |
| 20-1828 | Pink | 18g | 7.0 | 2-3/4 | .035/.038 | Yes |
| 21-1830 | Pink | 18g | 7.6 | 3.0 | .035/.038 | No |
| 21-1835 | Pink | 18g | 9.0 | 3-1/2 | .035/.038 | No |
| 21-1840 | Pink | 18g | 10.2 | 4.0 | .035/.038 | No |
219-0355 tip. Click for detail.

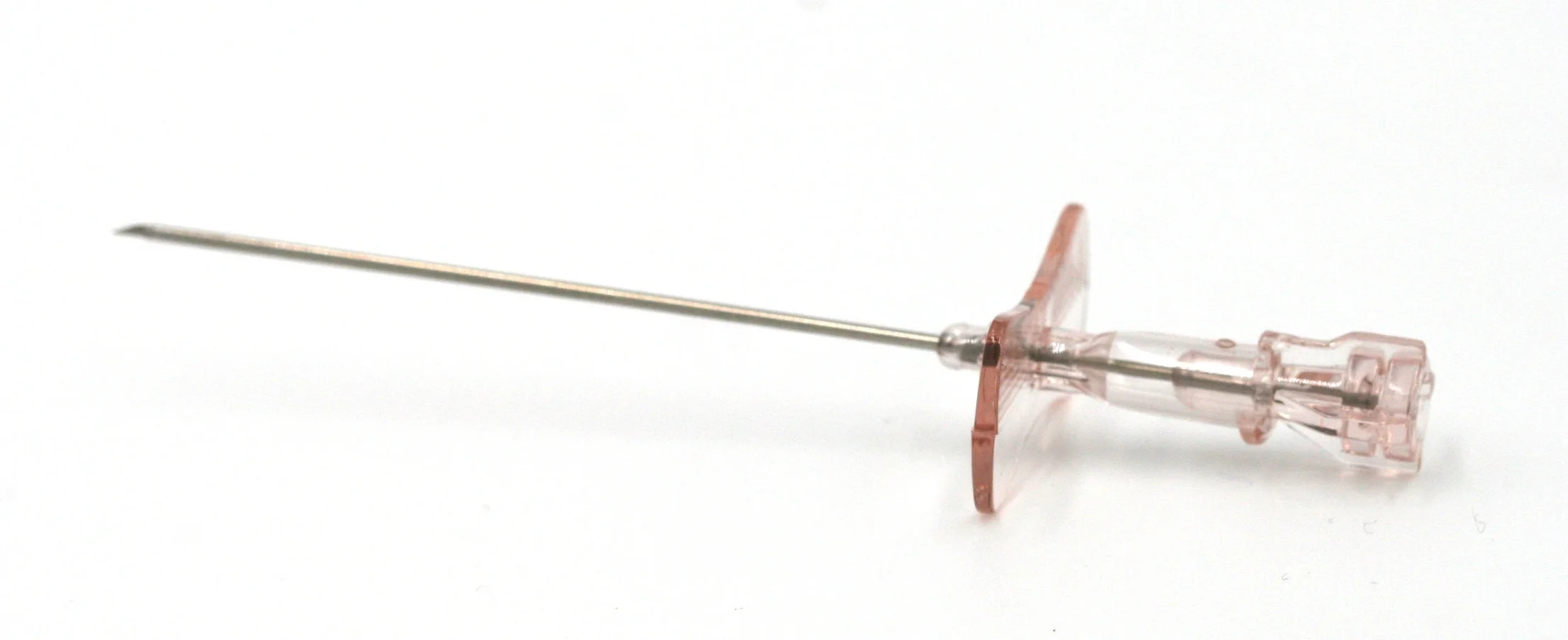

219-0355 shown. Click for detail.
19G NEEDLES - packaged in boxes of 25
ReOrder# |
Hub Color |
Gauge Size |
Length |
Accepts Guide |
Obturator |
|
| Cm. | In. | |||||
| 219-0355 | Brown | 19g | 5.7 | 2-1/4 | .032/.035 | No |
| 219-0357 | Brown | 19g | 7.0 | 2-3/4 | .032/.035 | No |
